    Series

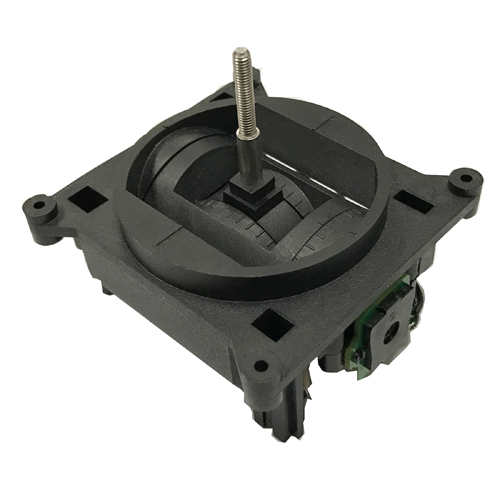

    FJ55
    Package diameter
    60mm
    Operating Direction
    Horizontal Vertical
    Bushing material
    Number of Gangs
    N/A
    Power-linear
    0.1W
    Power-audio
    Life cycle
    300,000 Cycles
    Switch Option
    N
    Detent Option
    N/A
    Mounting
    Element
    Temperature ppm/℃
    Tolerance
    Pulse
    Shaft material
    Metal
    Life cycle
    Operating type
    Power rating
    Travel(mm)
    Lever length
    Turns
    Specification
    Introdution

    1. Separated spring force for x-axis and y-axis

    2. Great hand feeling with no wobble of the lever

    3. Perfect for Drone controller use

    Electrical characteristics
    Total Resistance
    5KΩ~10KΩ
    Total Resistance Tolerance
     ± 10%
    Resistance Taper
     B taper
    Rated Power
     Taper B: 0.1W
    Noise
     Less than 150mV
    Voltage Divider Error
     47%~53%
    Mechanical characteristics
    Figure of lever operation
     Circular Operating
    Stopper Strength
     3.1Kgf.cm Min 3Sec.
    Operating angle of lever
    X-X:56±5° Y-Y:52±5°
    Push-Pull Strength
     Push/Pull: 3.0Kgf Min 3Sec.
    Operating Force
     50±40gf.cm
    Accuracy of rest position
     ±3°
    Durability
    Rotational Life
     300,000Cycles Min.
    Operating Temperature Range
    -10°~+70°
